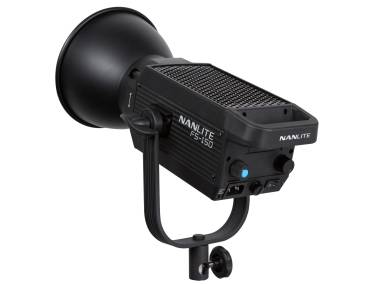

NANLITE FS-150 LED Spot Light

Code no: 3818

All in one, compact daylight spot light for still lifes, portrait photographs, photo and video shots. For even, extremely bright illumination and for obtaining special, individually customizable lighting effects.

With LED array. Flicker free light, free from infrared and UV parts. 5600 Kelvin color temperature (daylight / neutral color rendition), high color rendering index: CRI: 96, TLCI: 98. Brightness can be adjusted in 1 % increments from 0 – 100 %.

11 lighting effects can be selected: brightness changes in infinite loops, flashing, pulsing, thunderstorm simulation with flashing sequences, TV simulation, paparazzi (popping-up flashbulbs), candle-light/fire, simulation of a defective lamp, fireworks, explosions and the simulation of welding.

With all these lighting effects, brightness can be individually selected and one or several other settings can be made, for example with brightness changes in infinite loops the duration of a loop, the desired interval duration for the flashing effect and the intensity for the popping-up flashbulbs.

The display screen shows brightness, lighting effects and their adjustment options, radio channel, language and firmware version.

All current settings can be saved together against unintentional resetting.

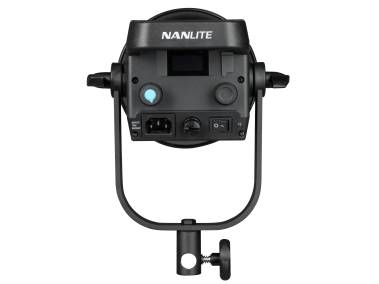

Control of all functions is done by two control dials on the rear side of the spot light or with the free NANLINK APP via Bluetooth.

Built-in radio receiver to control the tube light also via 2.4 GHz, either with the WS-RC-C2 radio remote control (optional accessory) or via the NANLINK APP (WS-TB-1 NANLINK Box required as optional accessory).

Note: The NANLINK APP for iOS can be found in the APP Store, for Android at Google Play.

A low-noise cooling fan and a large heat sink allow continuous operation.

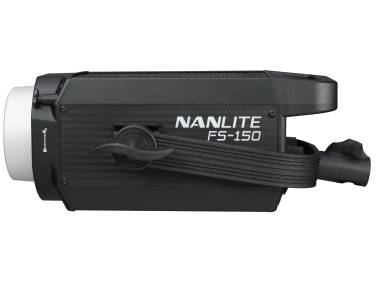

Sturdy aluminum/plastic housing with swivel/carrying handle.

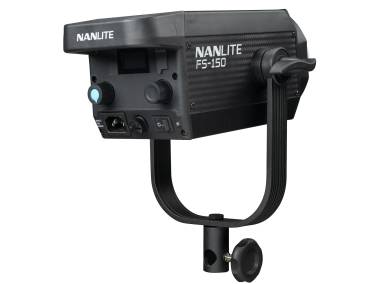

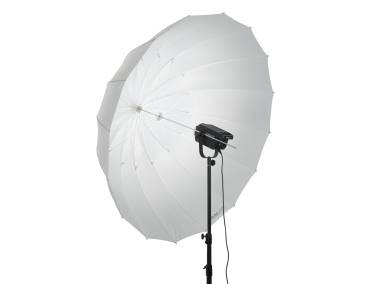

The spot light is tiltable on a mounting bracket made of aluminum. Mounts on suitable stands or supports with 16 mm (5/8“) standard spigot. Built-in umbrella mount.

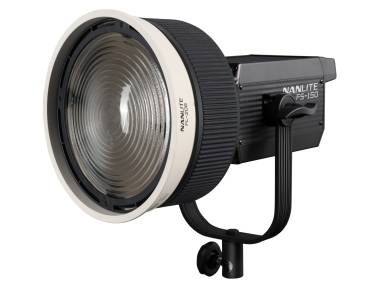

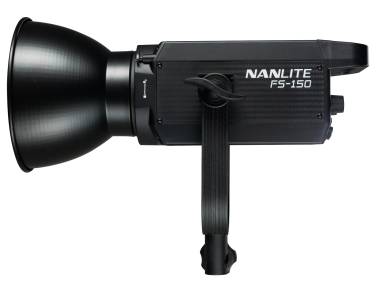

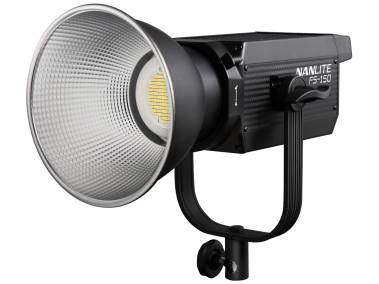

Removable reflector, replaceable with Fresnel attachment or other light affecting attachments with Bowens bayonet (available as optional accessories).

Power supply via the supplied mains lead.

Firmware update (current firmware).

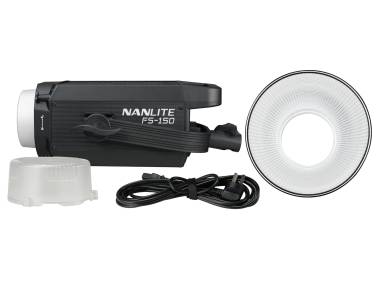

Scope of delivery: spot light with protective cover for LED array, reflector and 4.50 m (14.8 ft.) mains lead.

Specifications:

3818 FS-150 LED Spot Light
Light source: 180 W LED array
Color temperature: 5600 Kelvin
Color rendering index: CRI: 96, TLCI: 98

Max. illuminance (lux):
              without     with           with Fresnel attachment
              reflector    reflector     (optional accessory)
      120°        55°              Spot 10°       Flood 45°

at 1 m    6905    26380         54890            15920
at 2 m 1720       5650         11360            3915
at 3 m     815      2420          4735              1740

Operating voltage: AC 100-240 V, 50/60 Hz

Rated power: 185 W
Dimensions incl. mounting bracket, without reflector:
approx. 356 x 213 x 115 mm (14 x 8.4 x 4.5 in.)

without mounting bracket, without reflector:
approx. 288 x 137 x 115 mm (11.3 x 5.4 x 4.5 in.)

Weight incl. mounting bracket, without reflector, without mains lead: approx. 2.27 kg (5 lbs.)

3820 FS-200 LED Spot Light
Light source: 225 W LED array
Color temperature: 5600 Kelvin
Color rendering index: CRI: 96, TLCI: 98

Max. illuminance (lux):
              without     with           with Fresnel attachment
               reflector    reflector     (optional accessory)
      120°        55°              Spot 10°       Flood 45°

at 1 m 7850    29380         53860            18160
at 2 m   1980        6390      11215              4525
at 3 m     950        2775           4730              2025

Operating voltage: AC 100-240 V, 50/60 Hz

Rated power: 240 W
Dimensions incl. mounting bracket, without reflector:
approx. 306 x 232 x 123 mm (12 x 9.1 x 4.8 in.)

without mounting bracket, without reflector:
approx. 272 x 156 x 123 mm (10.7 x 6.1 x 4.8 in.)

Weight incl. mounting bracket, without reflector, without mains lead: approx. 2.48 kg (5.5 lbs.)

3822 FS-300 LED Spot Light
Light source: 330 W LED array
Color temperature: 5600 Kelvin
Color rendering index: CRI: 96, TLCI: 98

Max. illuminance (lux):
              without     with           with Fresnel attachment
              reflector    reflector     (optional accessory)
      120°        55°              Spot 10°       Flood 45°

at 1 m 12550 41040       50380            22610
at 2 m    3075     8850         10480              5660
at 3 m    1445       3780           4385              2515

Operating voltage: AC 100-240 V, 50/60 Hz

Rated power: 350 W
Dimensions incl. mounting bracket, without reflector:
approx. 343 x 232 x 123 mm (13.5 x 9.1 x 4.8 in.)

without mounting bracket, without reflector:
approx. 312 x 156 x 123 mm (12.3 x 6.1 x 4.8 in.)

Weight incl. mounting bracket, without reflector, without mains lead: approx. 2.95 kg (6.5 lbs.)
