NANLITE MixPanel 60 RGBWW Multi-functional Panel Light

Code no: 3876

Professional, powerful LED panel light with slim housing, barn doors and glare-free white light, directed white light and colored light illumination modes (by selecting from the color spectrum or additive color mixing or selecting predefined color filters/gel filters). 10 special lighting effects that can be customized individually. Complete settings can be saved and retrieved as needed. Comes with mains adapter.

For the creative arrangement of photo and video shots in the studio, home office or on location.

Glare-free white light is particularly suitable for portrait, interview, social media, vlogging, video conference, webinars, still life, table top and macro shots. Directed white light allows for high illuminance and therefore greater range. Both with glare-free white light as well as with directed white light, the color temperature is adjustable in 100-Kelvin steps from 2700 Kelvin (artificial light / warm white) via 5600 Kelvin (daylight / neutral white) to 7500 Kelvin (daylight / cold white). In addition, with glare-free white light and directed white light green and magenta can each be adjusted in 50 increments. The light is flicker-free and without infrared and UV components. High color rendering index: CRI: 98, TLCI: 95.

With colored light it is possible to add color effects to portraits, product shots and scenes or to create a particular lighting atmosphere, for example by a background illuminated with colored light. The light offers three options for setting the desired color: By selecting one of 360 different colors of the visible spectrum with color saturation additionally adjustable from 0 % to 100 %, 36000 shades of color can be displayed. The second option is additive mixture of color (RGBW): a value from 0 to 255 can be set for each of the primary colors red, green and blue, plus white light from 0 % to 100 %. And as a third option, 43 pre-programmed color filters/gel filters, each with a light source of 3200 K or 5600 K, can be selected (5 orange, 5 blue and 33 other color filters).

With glare-free white light, directed white light and colored light (except RGBW) and also with the special effects listed below, the brightness can be adjusted in 1 % increments from 0 % to 100 % and by pushing a button you can switch between the set brightness and 0 % brightness without having to switch the lighting unit off completely.

10 lighting effects that can all be varied individually, offer creative arrangements for cinematic scenes: thunderstorm simulation, police car, TV simulation created by sudden random brightness changes, popping-up flashbulbs (“Paparazzi”), candle-light/fire and lightshow simulation (“Disco”). There are always multiple different setting possibilities. Besides adjusting the brightness, there are for example these settings when using the lightshow simulation: a choice between 3, 6, 9, 12, 15, 18, 21 or 24 colors and the required speed of the color change. The police car effect offers: blue light, color change red/blue, color change blue/white and color change red/blue/white.

Movie makers and photographers will furthermore enjoy effects like changing color and color temperature in infinite loop as well as flashing or pulsing with white light or colored light. These effects also allow a brightness change and – in addition – selecting initial and terminal value of the desired color spectrum of the color change in infinite loops plus the duration of the loop. A regular change in direction of the color change as well as the combination with flashing or pulsing can also be selected.

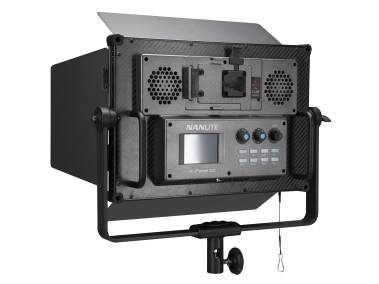

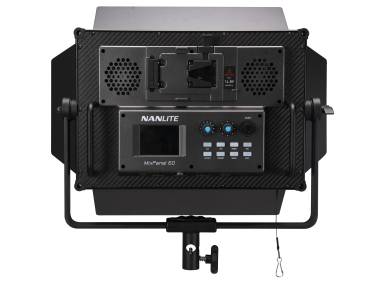

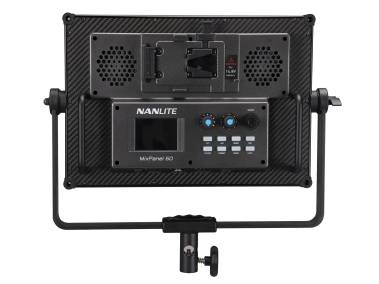

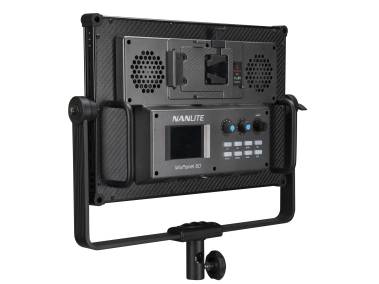

Easy to read control panel with large info display, three control dials and eight hotkeys for simple, intuitive operation. With a push of a button saving all actual settings against unintentional resetting is possible. In addition, the light offers the possibility of storing complete settings and retrieving them when needed. The designations of the settings can be freely selected.

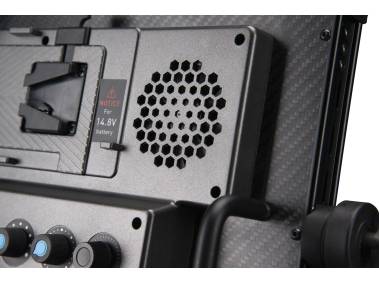

A low-noise, two-stage cooling fan allows continuous operation. The cooling fan can be switched off (resulting in reduced maximum brightness).

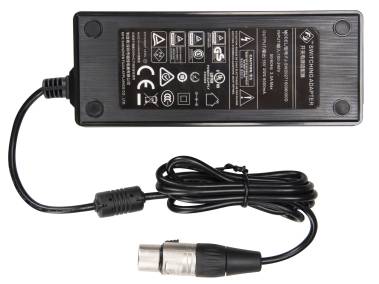

Power supply via the supplied mains adapter. Mounted via mains adapter holder in the V-mount connection on the back of the light. For mobile, mains-independent use, operation with V-mount battery possible (not included).

Sturdy aluminum/plastic housing with handles, back side with carbon look.

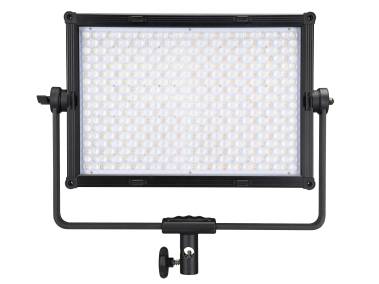

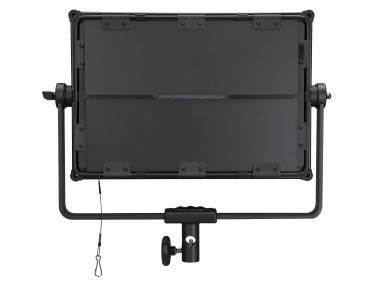

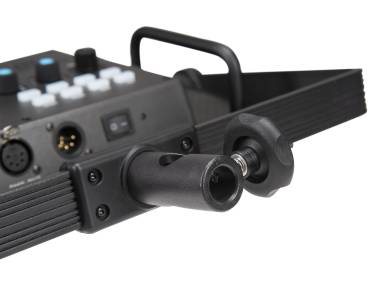

The light is tiltable on a mounting bracket made of aluminum. Mounts on suitable stands or supports with 16 mm (5/8“) standard spigot.

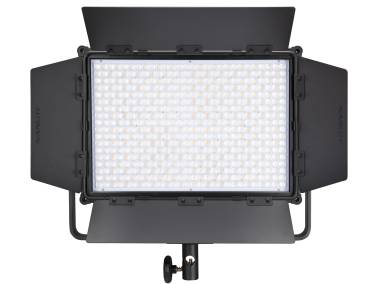

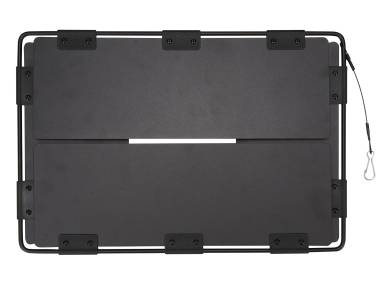

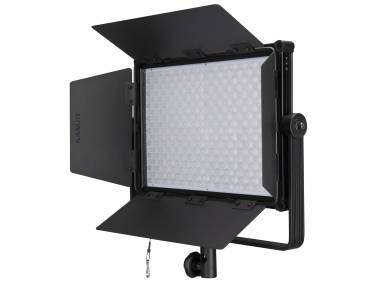

Removable barn doors attachment. Soft box as optional accessory.

Built-in radio receiver for wireless control of brightness, color temperature, green/magenta correction, color and color saturation via WS-RC-C2 radio remote control (optional accessory) or control via NANLINK APP (WS-TB-1 NANLINK Box required as optional accessory).

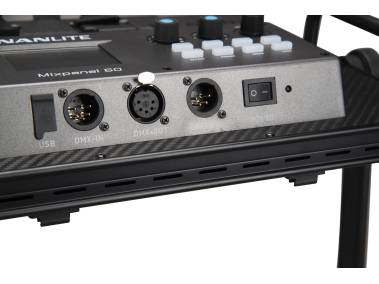

The light can also be controlled via DMX.

Firmware update (current firmware).

Padded carrying case with removable dividers, mesh pocket inside the lid, shoulder strap, shoulder pad with anti-slip protection, carrying handle and tripod holding loops on the lid.

Scope of delivery: light with barn doors attachment, mains adapter with mains adapter holder, mains lead and carrying case.


MixPanel 60 (3876)

Color temperature: 2700 - 7500 Kelvin
Color rendering index: CRI: 98, TLCI: 95
Green/magenta correction: -50 to +50

Max. illumination (lux):
                                  at 1 m             at 2 m             at 3 m             at 4 m             at 5 m
2700 K                       4755               1290               595                 345                 230
3200 K                       5440               1485               690                 395                 260
5600 K                      5845               1575               730                 420                 280
7500 K                       5695               1535               705                 410                 270
Red                            1600                 430               200                 115                   75
Green                        3615                 960               445                 260                 175
Blue                             690                 185                 85                   50                   35

Panel size:               approx. 31.6 x 20.8 cm (12.4 x 8.2 in.)
Operating voltage:   DC 15 V
Rated power:            64 W
Suitable battery:      V-mount lithium ion battery, 14.4 - 14.8 V
Dimensions (WxHxD): approx. 426 x 370 x 82 mm (16.8 x 14.6 x 3.2 in.)
(with mounting bracket)
Weight:                      approx. 3.3 kg (7.3 lbs.)

Mains adapter
Input: AC 100 - 240 V, 50/60 Hz
Output: DC 15 V, 6 A max.

MixPanel 150 (3877)

Color temperature: 2700 - 7500 Kelvin
Color rendering index: CRI: 98, TLCI: 95
Green/magenta correction: -50 to +50

Max. illumination (lux):
                                  at 1 m             at 2 m             at 3 m             at 4 m             at 5 m
2700 K                       10360            2870               1325                 770               505
3200 K                       12330            3400               1555                 905               600
5600 K                       13880            3730               1745               1005               665
7500 K                       13280            3605               1640                 955               635
Red                              2840               760                 345                 205               135
Green                          6110             1640                 760                 445               295
Blue                             1240               330                 150                   90                 60

Panel size:               approx. 37.2 x 27.2 cm (14.6 x 10.7 in.)
Operating voltage:   DC 24 V
Rated power:            164 W
Suitable battery:      V-mount lithium ion battery, 26 V
Dimensions (WxHxD): approx. 482 x 435 x 82 mm (19 x 17.1 x 3.2 in.)
(with mounting bracket)
Weight:                      approx. 4.1 kg (9 lbs.)

Mains adapter
Input: AC 100 - 240 V, 50/60 Hz
Output: DC 24 V, 7.5 A max.


3878 - NANLITE SB-MP60 Soft Box

3702 - NANLINK WS-RC-C2 RGB and Bi-Color Radio Remote Control

3706 - NANLINK Box WS-TB-1

3890 - NANLITE BT-V-14.8V160 V-Mount Battery

3893 - NANLITE BT-CGV-14.8V-1 Charger

3188 - “AutoFold L” Light Stand

3196 - Light Stand "Large"

3198 - Studio Light Stand 131-217 cm           (51.6 to 85.4 in.)

3199 - "C-Stand 330” Boom Stand

5048 - Reversible Thread Pin

5040 - "Magic Arm" Hinged Bracket

5043 - Universal Clamp

Subject to errors and technical changes.

This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
