Rodenstock Enlarging Lens Rodagon 5,6/105 mm
Code no: 4327
Rodenstock Enlarging Lenses
Rogonar: For enlarging scales up to 4:1. For almost all B&W work, can be used for color enlarging with some restrictions.
Rogonar-S: Almost unlimited application in B&W enlarging, in color up to enlarging scales of approx. 10:1.
Rodagon: Almost unlimited application for all B&W and color anlarging.
Apo-Rodagon N: For highest standads. Brilliant color reproduction with apochromatic correction.
Rodagon-WA: Wide-angle lens for highest performance. For achieving large enlarging scales at normal distance to base board.
(Image: 4328)
Code no. | Description | Lens | Focal | Elements | click-stop | Aperture | Aperture scale | Filter | max. |
4363 | Rodagon-WA | 4,0 | 40 mm | 6 | x | x | x | 40,5 mm | 24 x 36 mm |

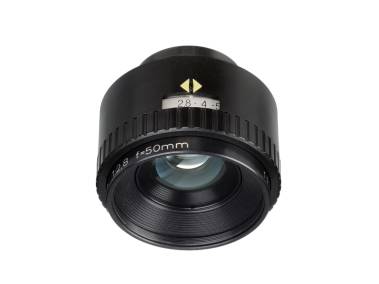

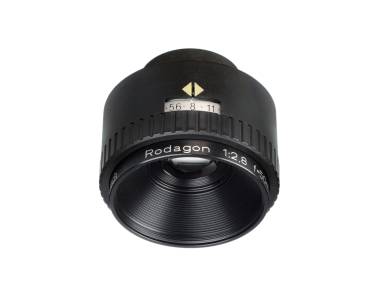

4367 | Rodagon | 2,8 | 50 mm | 6 | x | x | x | 40,5 mm | 24 x 36 mm |
4469 | Apo-Rodagon N | 2,8 | 50 mm | 6 | x | x | x | 40,5 mm | 24 x 36 mm |
4360 | Rogonar-S | 4,5 | 75 mm | 4 | x | x | x | 40,5 mm | 6 x 6 cm |
4341 | Rodagon | 4,0 | 80 mm | 6 | x | x | x | 40,5 mm | 6 x 7 cm |
4340 | Apo-Rodagon N | 4,0 | 80 mm | 7 | x | x | x | 40,5 mm | 6 x 7 cm |

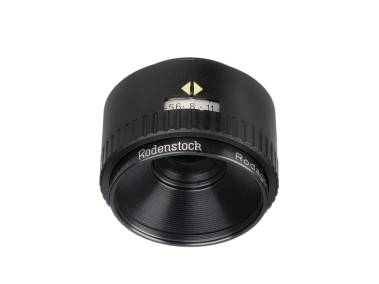

4327 | Rodagon | 5,6 | 105 mm | 6 | x | x | x | 40,5 mm | 6 x 9 cm |
4329 | Apo-Rodagon N | 4,0 | 105 mm | 7 | x | x | x | 40,5 mm | 6 x 9 cm |
All enlarging lenses with M 39 x 1 mounting thread.
Code no: 4327
Subject to errors and technical changes.
