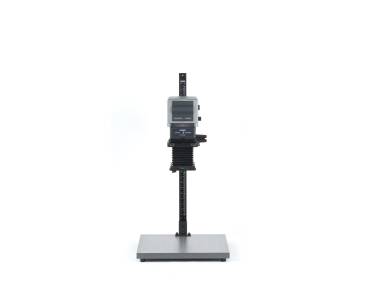

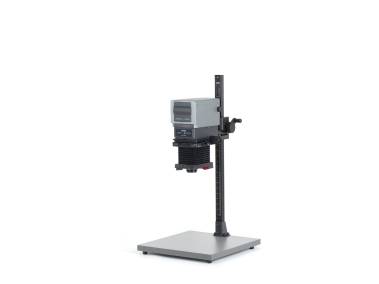

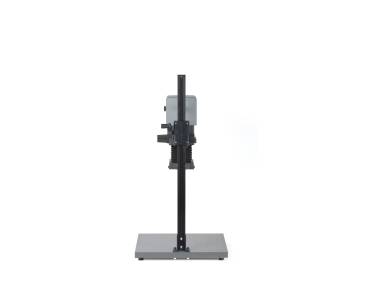

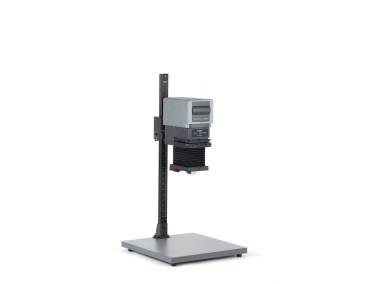

VP 350 SYSTEM-V B & W Enlarger

Code no: 4401

Black & White enlarger for the exposure of black and white negatives on photographic paper. For the film format 24 x 36 mm (35 mm film) and lenses up to 50 mm focal length. Can be converted to formats up to 6 x 9 cm (2.4 x 3.5 in.) and into a copy stand.

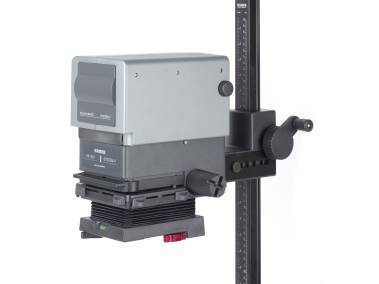

Enlarger head with removable compound negative carrier, fitted with format masks 24 x 36 mm (35 mm). 75 W opal lamp. Exchangeable, optically ground single condenser. Lens panel with spirit level and red filter. Quick change attachment for lenses. Height adjustment by hand-crank. Floor projection possible. Vibration-resistant column. Matt gray laminated baseboard with printed fine grid.

Supplied without lens.

Specifications:
Column (HxWxD): approx. 760 x 35 x 25 mm (29.9 x 1.4 x 1 in.)
Baseboard (WxHxD): approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 in.)
Lamp: opal lamp 75 W, E27
Maximum enlargement on baseboard: 24 x 30 cm (9.4 x 11.8 in.)
Cord: approx. 2.50 m (8.2 ft.)

Scope of supply:
Enlarger with compound negative carrier, equipped with format masks 24 x 36 mm (4486), opal lamp (4356), two lens holder rings. Without lens.

-----------------------------------------------------------------------------------------------------------------
Similar products:
4465 VP 6005 SYSTEM-V B & W Enlarger, for film formats from 24 x 36 mm (35
         mm) up to 6 x 6 cm (2.4 x 2.4 in.), can be converted to formats up to 6 x 9 cm
         (2.4 x 3.5 in.). Baseboard 45 x 50 cm (17.7 x 19.7 in.), column 100 cm (39.4
         in.).
4540 VP 9005 SYSTEM-V B & W Enlarger, for film formats from 24 x 36 mm (35
         mm) up to 6 x 9 cm (2.4 x 3.5 in.). Baseboard 60 x 50 cm (23.6 x 19.7 in.),
         column 100 cm (39.4 in.).
-----------------------------------------------------------------------------------------------------------------

Additional information about the VP 350 SYSTEM-V B & W Enlarger:

Lighting head with 75 watt opal lamp, lamp adjustable. Available as an optional accessory: Filter drawer (4448) for inserting 8.5 x 8.5 cm filters (e.g. Multigrade^® filters); with diffusion screen for homogeneous light distribution.

Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and registering pins. Incl. format masks 24 x 36 mm (35 mm). More format masks and glass inserts are available as optional accessories.

Optically ground single condenser for formats up to 24 x 36 mm, interchangeable with double condenser for formats up to 6 x 6 cm (4542) or double condenser for formats up to 6 x 9 cm (4449).

Lens panel with spirit level and slidable red filter. Quick change attachment for easy lens mounting with lens holder ring.

Height adjustment by hand-crank operated friction drive on plastic bearings.

Horizontally adjustable to change the distance between the column and the optical axis. This is required, for example, if the usable depth on the baseboard is reduced by the width of the rear frame when using a masking frame.

Floor projection. For this purpose, the column can be mounted in the column base turned by 180°.

Vibration-resistant column of dull black anodized aluminum tubing, with cm and inch scales.

Non-reflecting, matt gray laminated baseboard with printed fine grid and cm and inch scale and metal base for the column.

Can be converted into a copy stand in just a few simple steps. To do this, the enlarger head is replaced with the RA 2 XA copy adapter (5421). If required, a lighting unit from the R2 Copy System can be attached to the baseboard.
