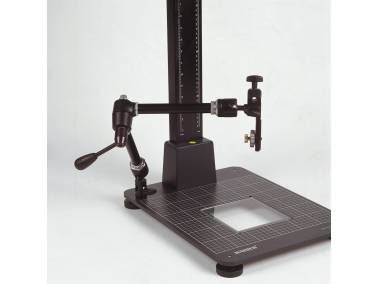

"Magic Arm" Hinged Bracket

Code no: 5040

To mount and individually align cameras, lights and accessories. Mounted with reversible thread adapter on tripods and clamps with a 16 mm (0.6 in.) sleeve. Mounting platform with sliding 1/4” camera screw, 3/8” conversion thread and reflector umbrella mount. Reversible thread adapter with 1/4” and 3/8” internal thread and with ball-and-socket joints at both ends. Both ball-and-socket joints and the middle joint are released and tightened by a central locking disk. Max. load (in horizontal position): 3 kg (6.6 lbs.)
Length: 53 cm (20.9 in.)

Accessories

1216 - Mounting Shoe

5029 - Clamp Adapter open witdth 7-18 mm

6032 - Binocular Mount / Clamp Adapter

5043 - Universal Clamp

5847 - Sockets

Subject to errors and technical changes.
