NANLITE PavoTube II 30X 1Kit

Code no: 3723



Multifunctional LED color effect light in tubular form. Provides white light and colored light as well as special lighting effects, including segment effects. Direct control or remote control via Bluetooth, radio or DMX/RDM. Offers either mains operation or battery operation with integrated lithium-ion battery for mobile, mains-independent use. Multiple mounting and handling possibilities. Mains/charging adapter, mounting accessories and padded carrying bag included.

For the creative arrangement of photo and video shots in the studio, home office or on location. Particularly suitable for portrait, interview, social media, vlogging, video conference, webinars, table top and macro shots.

In the white light mode, the color temperature can be adjusted from 2700 to 12000 Kelvin. In addition green and magenta can each be adjusted in 100 increments. The light is flicker-free and without infrared and UV parts. High color rendering index: CRI: 97, TLCI: 98.

In color mode it is possible to add color effects to portraits, product shots and scenes or create a particular lighting atmosphere, for example by a background illuminated with colored light. You can generate 360 different colors of the visible spectrum by mixing the light from LEDs with the primary colors red, green and blue (RGB). In addition color saturation can be adjusted between 0 % and 100 %, thus 36.000 shades of color can be represented.

In white light mode as well as with colored light and with special effects and segment effects listed below, the brightness can be adjusted in 1 % increments from 0 % to 100 %.

19 special effects and additional multicolor segment effects (Pixel Control), which can all be varied individually:

Thunderstorm simulation, police car, TV simulation created by sudden random brightness changes, popping-up flashbulbs (“Paparazzi”), candlelight/fire, lightshow simulation (“Disco”), simulation of a bad bulb created by flickering in irregular intervals, fireworks, explosions and the simulation of welding. There are always multiple different setting possibilities. Besides adjusting the brightness, there are for example these settings when using the police car effect: blue, color change red/blue, color change blue/white and color change red/blue/white plus setting the flashing speed. The lightshow simulation offers the choice between 3, 6, 9, 15, 18, 21 or 24 colors and the required speed of the color change. And the fireworks effect features besides other setting the possibility for adjusting the duration of the “die-down”. In addition, flash sequences and explosion flashes can also be triggered manually.

Movie makers and photographers will furthermore enjoy effects like changing color, color temperature and brightness in infinite loop as well as flashing or pulsing with white light or hue.

With the segment effects, the illuminated area is divided into different areas (LED segments), which simultaneously light up in different colors or with different color temperatures or different brightness and which can change color, color temperature or brightness. Segment effects can also be further adjusted, e.g. the speed of change.

Control of all functions is done by only six keys. All relevant data are displayed on the info screen.

Control with the free NANLINK APP via Bluetooth.

Built-in radio receiver to control the tube light also via 2.4 GHz, either with the WS-RC-C2 radio remote control (optional accessory) or with the smartphone via the NANLINK APP (WS-TB-1 NANLINK Box required as optional accessory).

Note: The NANLINK APP for iOS can be found in the APP Store, for Android at Google Play. When controlled via the NANLINK APP, additional setting options and segment effects are available.

The tube light can also be controlled via DMX/RDM (additional accessories required).

Power supply via the included mains/charging adapter or the integrated lithium-ion battery.

The tube light can be attached via the included tube clip on stands and fixtures with 1/4“ connecting thread. For mounting one or more PavoTube tube lights on stands and fixtures with 16 mm (5/8“) standard spigot or standard sleeves, additional mounting elements are available as optional accessories.

The tube light is equipped with three 1/4" connection threads. To hang the tube light, two eyebolts are included that can be fastened in the 1/4" connection threads of the light.

Furthermore, the tube light can be positioned vertically with the LS-FL-1/4 floor stand or "solid 3+" mini stand (both optional accessories) and, due to the octagonal end pieces it can also be placed on flat surfaces in a way that it shines in a particular direction, without rolling away.

A waterproof housing is available as an optional accessory to use the tube light in rain or underwater.

Firmware update (current firmware).

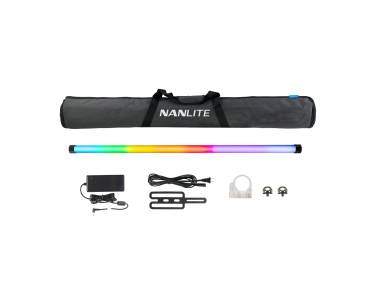

Scope of delivery: color effect light with built-in battery, mains/charging adapter, 3 m mains lead, mains adapter hanger, tube clip, 2 eyebolts, carrying bag.


Specifications:

3720: PavoTube II 15X 1Kit

with PavoTube II 15X color effect light:

Color temperature: 2700 – 12000 Kelvin
Color rendering index: CRI: 97, TLCI: 98
Green/magenta correction: -100 to +100

Max. illuminance (lux):
                    at 1 m       at 2 m       at 3 m
2700 K         345           85             40
3200 K         350           85             40
5600 K         375           95             40
6500 K         385           95             45
Red              150           40             15
Green           310           75             35
Blue                65           15              5

Rated power: 35 W
Operating voltage: DC 15 V
Lithium-ion battery: 14.8 V / 2200 mAh
LED segments: 8
Dimensions: ø 4.3 cm (1.7 in.), 60 cm (23.6 in.)
Weight: approx. 0.97 kg (2.1 lbs.)

Mains/charging adapter:
Input:      AC 100-240 V, 50/60 Hz
Output:   DC 15 V, 2 A max.


3723: PavoTube II 30X 1Kit

with PavoTube II 30X color effect light:

Color temperature: 2700 – 12000 Kelvin
Color rendering index: CRI: 97, TLCI: 98
Green/magenta correction: -100 to +100

Max. illuminance (lux):
                    at 1 m          at 2 m       at 3 m
2700 K         685              175            80
3200 K         690              175            80
5600 K         745              190            85
6500 K         770              195            85
Red              270                70            30
Green          585               145            65
Blue             125                 30            15

Rated power: 70 W
Operating voltage: DC 15 V
Lithium-ion battery: 18.5 V / 4400 mAh
LED segments: 16
Dimensions: ø 4.3 cm (1.7 in.), 114.5 cm (45.1 in.)
Weight: approx. 1.56 kg (3.4 lbs.)

Mains/charging adapter:
Input:      AC 100-240 V, 50/60 Hz
Output:   DC 15 V, 4 A max.

Accessories

3735 - NANLITE BD-PTII30X+EC Barn Doors Attachment

3737 - NANLITE AS-WT-PTII30X Waterproof Tube

3702 - NANLINK WS-RC-C2 RGB and Bi-Color Radio Remote Control

3706 - NANLINK Box WS-TB-1

3834 - NANLITE CB-DMX-ACP-1/2 DMX Adapter Cable

3711 - NANLITE HD-T12-1-C Tube Clip

3739 - NANLITE HD-T12-1-MC Tube Clip with Magnet

3738 - NANLITE LS-FL-1/4 Floor Stand

7223 - “solid 3+” Mini Tripod

3715 - NANLITE HD-T12-1-BHP Double Joint Tube Light Holder

3853 - NANLITE HD-T12-2-P Tube Light Holder

3854 - NANLITE HD-T12-2-BHG Tube Light Holder

3863 - NANLITE HD-T12-4-P Tube Light Holder

3864 - NANLITE HD-T12-4-BHG Tube Light Holder

3857 - NANLITE AS-MAM-PTIIX Multi-Angle Mount

3890 - NANLITE BT-V-14.8V160 V-Mount Battery

3893 - NANLITE BT-CGV-14.8V-1 Charger

3895 - NANLITE BT-BA-V Battery Holder

3896 - NANLITE CB-DT/DC D-Tap Cable

3799 - NANLITE BT-BA-SNP/DC Battery Holder

Subject to errors and technical changes.

This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
