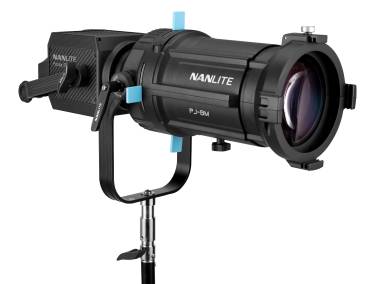

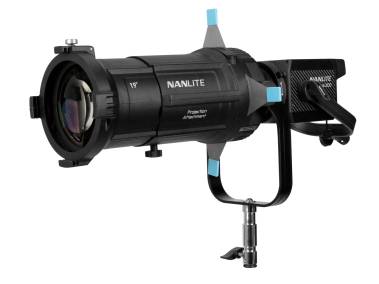

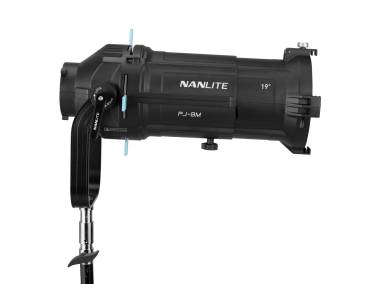

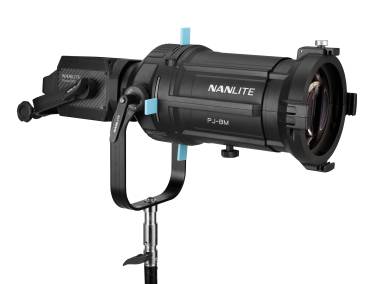

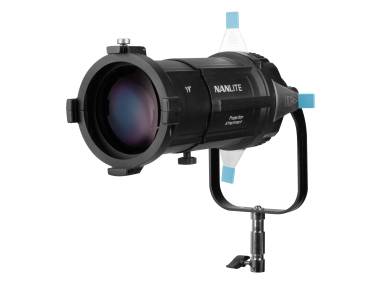

NANLITE PJ-BM-19 Projection Attachment, 19°

Code no: 3840

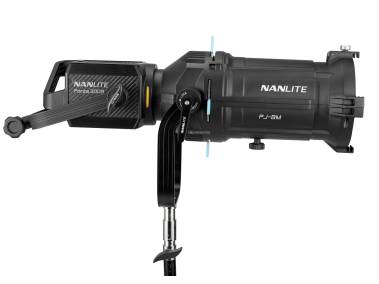

Professional attachment for precise and particularly bright projection of shapes, patterns and light effects. With coated, aspherical lens. For LED lights and spotlights with Bowens-compatible bayonet mount, e.g. Forza 200, 300, 300B, 500, 720, 720B or FS-150B, -200B, -300B.


Specifications:

Angle of radiation: 19°
Dimensions: 399 x 267 x 441 mm (15.7 x 10.5 x 17.4 in.)
Weight: 8 kg (17.6 lbs.)

Illuminance (lux) at 3 m,
e.g. with                    Forza 300      Forza 300B      Forza 500
                                                        (at 6500 K)
-----------------------------------------------------------------------------
without attachment           1630             1260              2275
with PJ-BM-19                  14570           15520            24220

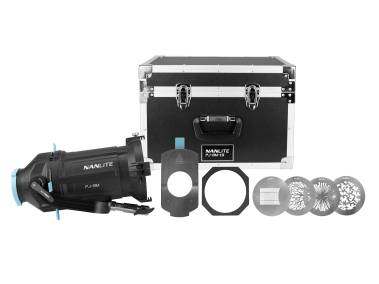

Scope of delivery: PJ-BM-19 projection attachment with 19° lens and silicone protective cap, gobo frame, four different B-size metal gobos (86 mm / 3.4 in. outer diameter), color filter frame and carrying case.

Also available as PJ-BM-36 Projection Attachment (3841) with 36° lens.


Additional information:

Coated aspherical lens for excellent light quality and sharp, distortion-free images. Uniform illumination, high light transmission. 19° angle of radiation.

Four adjustable shutter slides for lateral limitation of the projected area. Various triangular or square shapes are possible.

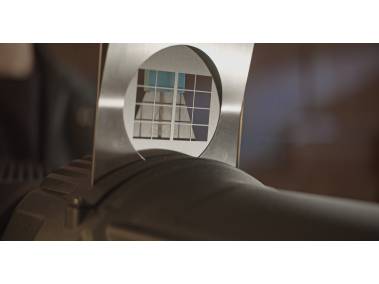

Slide-in compartments for gobo frame and iris diaphragm. Four different B-size metal gobos (shadow masks) included, additional metal gobos and iris diaphragm as optional accessories.

Holder for color filters / gel filter foils. Incl. color filter frame for 18 x 18 cm (7.1 x 7.1 in.) filters.

Sturdy die-cast aluminum housing.

Robust mounting bracket for swiveling the projection attachment. Large swivel range. Mounts on 16 mm (5/8") standard spigot or in 28 mm (1 1/8") standard sleeve.

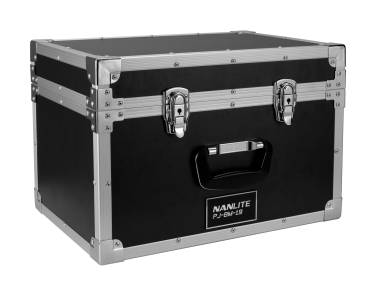

Carrying case with custom-fit interior padding and carrying handle.

Accessories

3842 - NANLITE PJ-BM-AI Iris Diaphragm

3843 - NANLITE AS-GB-B-SET1 Gobo Set

3844 - NANLITE AS-GB-B-SET2 Gobo Set
