Copylizer exe.cutive LED

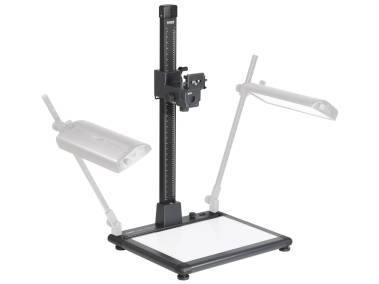

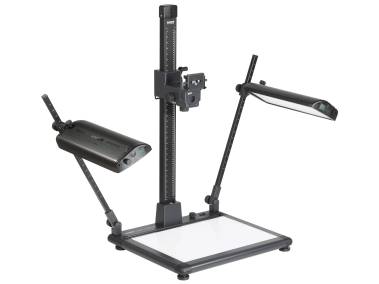

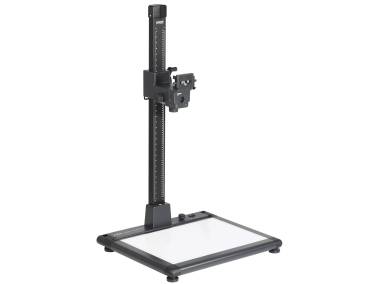

Camera stand with integrated transmitted light source. Illumina base plate with 270 SMD LEDs, 6000 Kelvin daylight, color rendering index (CRI) = 95, serviceable illuminated area 50.6 x 36 cm (19.9 x 14.2 in., > tabloid format), illuminance approx. 8300 cd/m², brightness continuously dimmable, flicker-free operation. Mounting fixtures for optional RB 5270 DX (5278) and RB 525 AS (5284) surface lighting units. Height-adjustable feet. Base with spirit level.
70 mm (2.8 in) wide high-stability, vibration-resistant column made of special aluminum tubing, matt black anodized, with cm and inch scales. Hand-crank operated height adjustment of camera arm by friction drive on plastic bearings. Weight compensation by integrated coil spring.

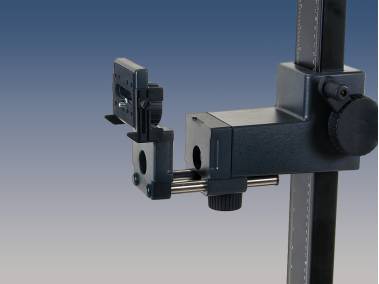

RTP camera arm with horizontally adjustable camera platform, camera body positioning device and interchangeable 1/4” and 3/8” threads.

Illumina base (WxD): 63 x 55 cm (24.8 x 21.7 in.)
Column height: 1 m (40 in.)
Max. load: approx. 4 kg (8.8 lbs.)

Accessories

5278 - RB 5270 DX Copylizer Lighting Unit

5282 - RB 521 AB Copylizer Lighting Unit

5284 - RB 525 AS Copylizer Lighting Unit

5292 - Pressure Plate for Copylizer and Illumina Base exe.cutive

5294 - Metal Plate for Copylizer and Illumina Base exe.cutive

Code no: 5215
