RB 24D LED Lighting Unit

Code no: 5468

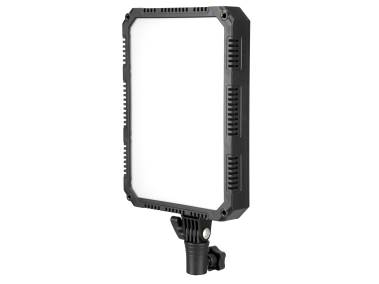

Daylight-type LED lighting unit with two PL 24D soft lights, each 24 watts, for even and soft illumination. Dimmable. Vertical arms with 16 x 16 mm (0.6 x 0.6 in.) cross section and strong cast aluminum clamp bases.

Specifications:

Lights
Light source:                      2 x 120 High-CRI LEDs (SMD)
Color temperature:            5600 Kelvin
Color rendition index:        CRI: 95
Angle of radiation:             80°
Light emitting area
       of one light:                 21.4 x 14.7 cm (8.4 x 5.8 in.)
Power consumption:          2 x 24 W
Operating voltage:             100 - 240 V

Vertical arms
Length:                               approx. 47 cm (18.5 in.)
Cross section:                    16 x 16 mm (0.6 x 0.6 in.)

Max. illumination*:              3600 lux
*based on uniform illumination of a 8.5 x 12 in. flat subject

Scope of delivery: 2 x PL 24D panel light, 2 x mains lead, 2 x vertical arm with cast aluminum clamp base and angle guide for the light, 2 x cable holder.

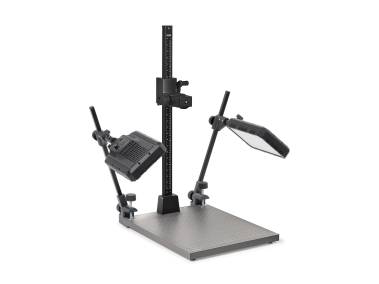

Suitable for RS 2 XA copy stand (5411).

Additional information:

Excellent lighting quality due to 120 selected LEDs in each light. 5600 Kelvin color temperature (daylight / neutral color rendering), high color rendition index (CRI) of 95. Flicker-free light, free of infrared and UV content.

Specially textured diffuser screens (21.4 x 14.7 cm / 8.4 x 5.8 in.) scatter and direct the emitted light and thus provide for a soft illumination and high illuminance.

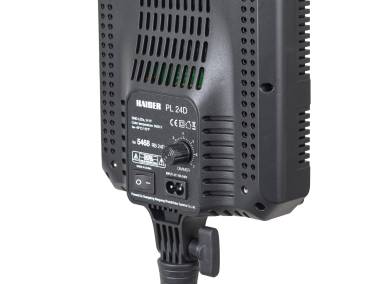

Brightness can be continuously dimmed between 0 and 100 %. Lights can be controlled individually.

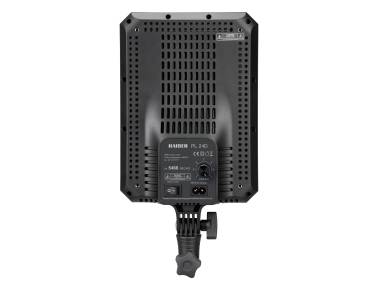

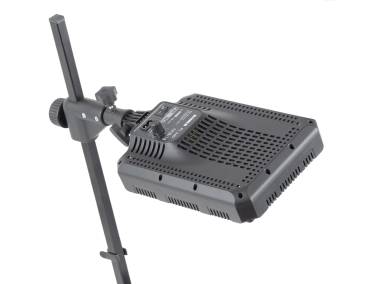

Light housings made of high-quality plastic, tiltable and adjustable in height along the vertical arms.

Vertical arms tiltable in detent joints.

Strong cast aluminum clamp bases for mounting, clamp width up to 48 mm (1.9 in.).

Cable holders for attaching the mains leads along the vertical arms.

PL 24D lights can also be used as desktop lights on suitable stands and fixtures with 16 mm (5/8") standard spigot / baby pin.
