Macro Focusing Stage

Code no: 5535

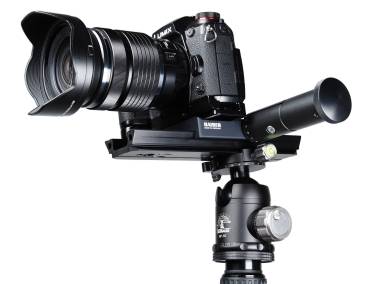

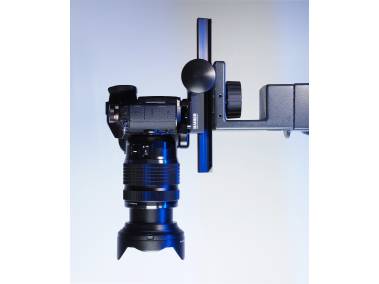

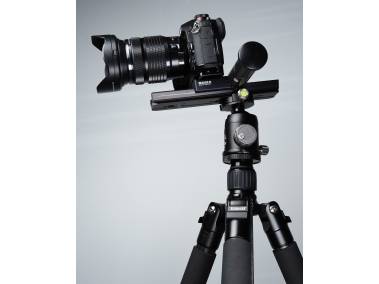

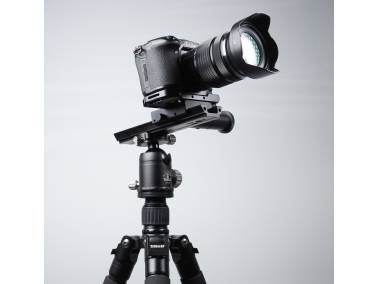

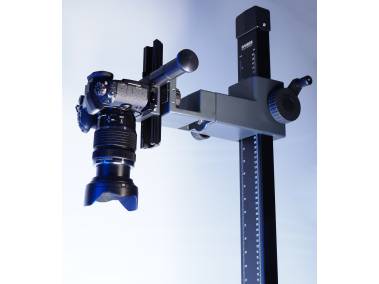

Professional focusing stage for precise focusing in macro, stereo, repro and panorama photography. For use on copy stands as well as on camera tripods and tripod heads. With quick release connector (Arca-Swiss compatible) and fine adjustment handle.

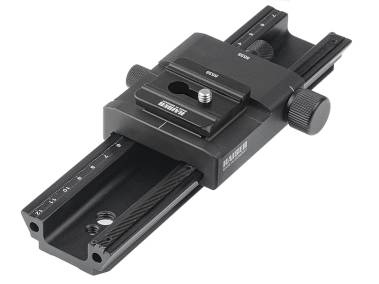

Focusing stage

Adjustment travel:   125 mm (4.9 in.)
Dimensions*:           200 x 100 x 33 mm (7.9 x 3.9 x 1.3 in.)
Weight*:                   412 g (0.9 lbs.)
*without quick release plate

Fine adjustment handle

Length:                    111 mm (4.4 in.)
Weight:                    121 g (4.3 oz.)

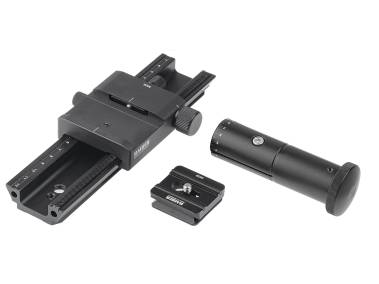

Scope of delivery: macro focusing stage, quick release plate, fine adjustment handle, Allen wrench 4 mm

Additional information:

Guide rail with three tripod bushes each 1/4" and 3/8" and dovetail guide (Arca-Swiss compatible) for mounting in suitable dovetail clamps. High quality aluminum section.

Precision helical toothed rack for precise guidance.

Millimeter scale for reproducible settings.

Slider with setting screw, quick release connector and locking screw.

Adjustment travel: 15 mm (0.6 in.) with one turn of the setting screw.

Quick release connector with dovetail clamp (Arca-Swiss compatible) and locking screw.

Square quick release plate, can also be used when turned by 90°. Camera connection thread 1/4".

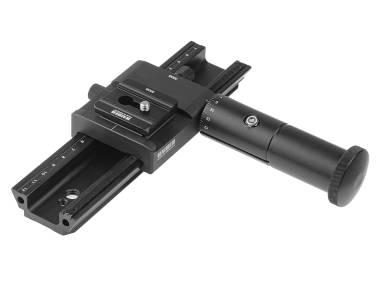

Fine adjustment handle for particularly sensitive positioning. Can be attached to the setting screw of the focusing stage. With scale: 1/4 mm adjustment travel per graduation mark.

Allen key for readjusting the clamping effect of the fine adjustment handle and for the camera screw on the quick release plate.

Two focusing stages can be combined to form a cross-slide system.


5536 - Quick Release Plate for 5535

Subject to errors and technical changes.
