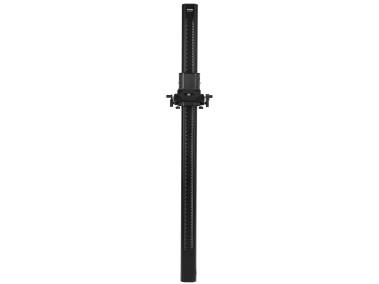

RDmot 1.8 Column

Code no: 5620

Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.

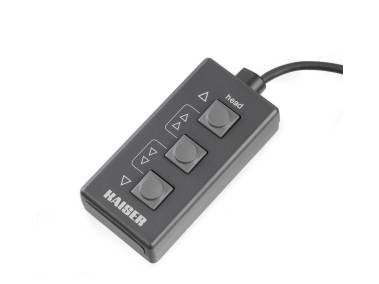

Camera carrier made of aluminum section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides. Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position. Camera mounting plate tiltable by ± 90°. Connecting screw horizontally adjustable. Height adjustment motorized, with two speeds. Cable remote control. Constant adjustment speed, independent of load. Automatic end switch by magnet sensor.

Column height: 1.80 m (5.9 ft.)
Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
Loading capacity: 8 kg (17.6 lbs.)
Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
Reversing mounting thread: 1/4” / 3/8” changeable

Accessories

5624 - RD Wall Mount

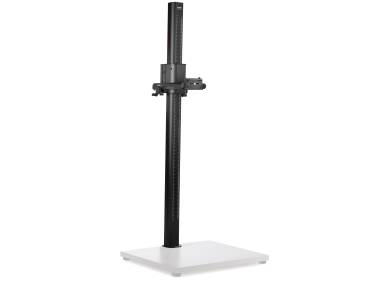

5625 - Column Base for RD columns

5618 - 75H Base Stand

5630 - Table

5712 - Table for Copying Works

Subject to errors and technical changes.
