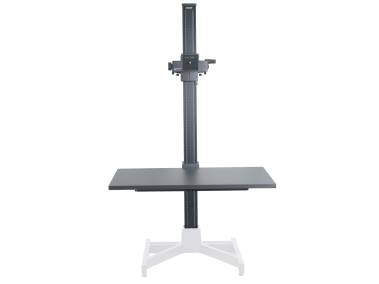

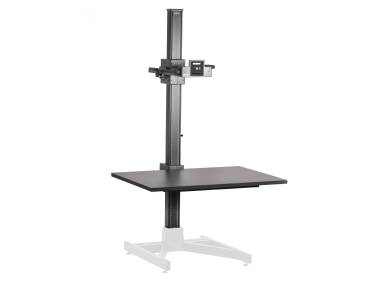

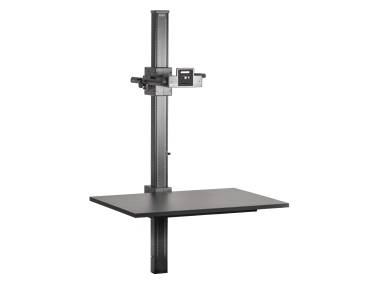

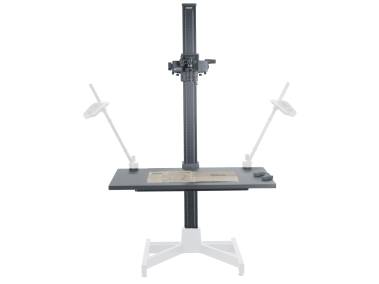

RSP 2motion Column

Code no: 5708

Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales with two-level motor-driven adjustment.

Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Anti-collision device.
Cable remote control.

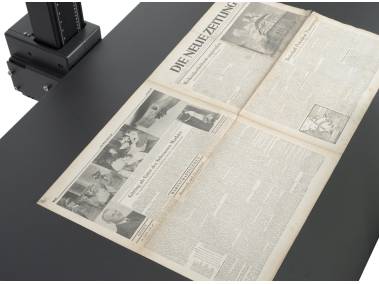

Detachable base board made of 4 mm aluminium with stabilizing substructure.

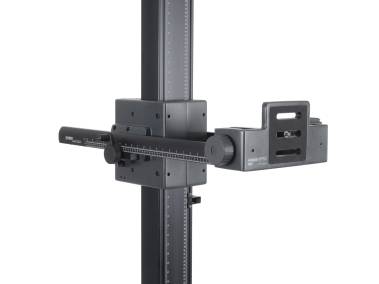

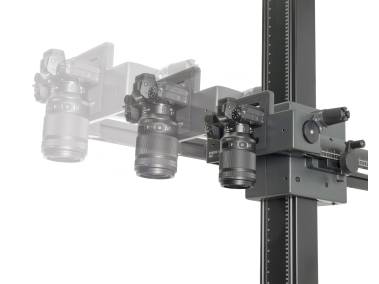

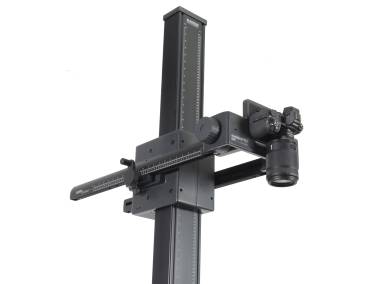

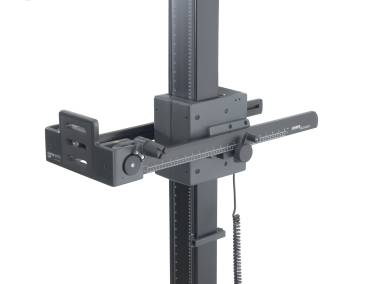

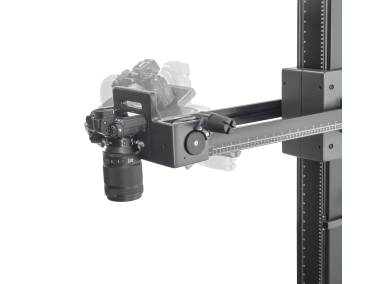

Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by +/- 90°. Built-in spirit level.

Total height: 216 cm (85 in.)
Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
Maximum load:  on camera carrier: 10 kg (22 lbs.)
                        on base board: 15 kg (33 lbs.)
Base board: 100 x 80 cm (39.4 x 31.5 in.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 1/4“ / 3/8“


5614 - Wall Mount rePRO

5627 - Close-up-Adapter

4421 - Adapter

5715 - Sheet Steel Plate A0

Subject to errors and technical changes.
