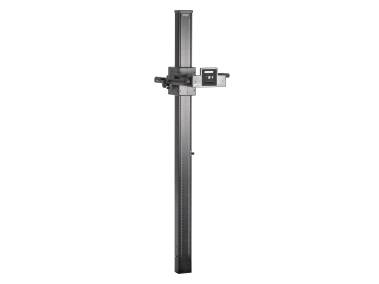

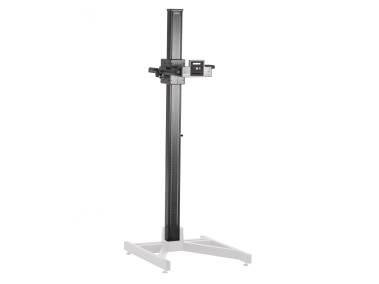

RSP Xtra Column

Code no: 5709

Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales.

Camera carrier with motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Cable remote control.

Camera carrier made of cast aluminum, horizontally adjustable via specially shaped parallel guides with gear rack and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate can be swiveled by +/- 90° with high-precision fine adjustment. Built-in spirit level.

Total height: 216 cm (85 in.)
Column cross section: 12 x 8 cm (4.7 x 3.1 in.)
Maximum load: 15 kg (33 lbs.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 3/8" / 1/4"


5614 - Wall Mount rePRO

5610 - rePRO Column Base

5627 - Close-up-Adapter

4421 - Adapter

5630 - Table

5712 - Table for Copying Works

5768 - Foot Pedal Shutter Release for Cameras

5648 - RB 100D LED Lighting Unit

5652 - RB 570 AX LED Lighting Unit

Subject to errors and technical changes.
