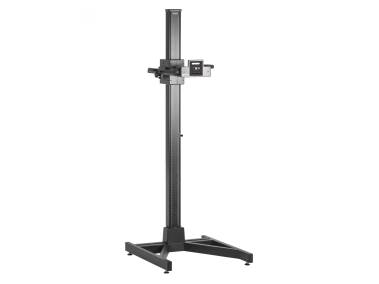

RSP Xtra Copy Stand

Code no: 5711

Heavy-duty copy stand for digital and analogue image capturing work with motor-driven height adjustment. Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales. Column foot made of double strutted steel tube. Cast aluminum base for bolting the column, with built-in spirit level. Four levelling feet.

Camera carrier made of cast aluminum, horizontally adjustable via specially shaped parallel guides with gear rack and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate can be swiveled by +/- 90° with high-precision fine adjustment. Built-in spirit level. Camera carrier with motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Cable remote control.

Stand is supplied without base board, intended to be used with Table for Copying Works 5712, with Table 5630 or custom-made devices.



Specifications:
Total height: 227 cm (89.4 in.)
Column cross section: 12 x 8 cm (4.7 x 3.1 in.)
Maximum load: 15 kg (33 lbs.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 3/8" / 1/4"
Required floor space (WxD): 83 x 140 cm (32.7 x 55.1 in.)

Accessories

5630 - Table

5712 - Table for Copying Works

5627 - Close-up-Adapter

4421 - Adapter

5768 - Foot Pedal Shutter Release for Cameras

5648 - RB 100D LED Lighting Unit

5652 - RB 570 AX LED Lighting Unit

Subject to errors and technical changes.
