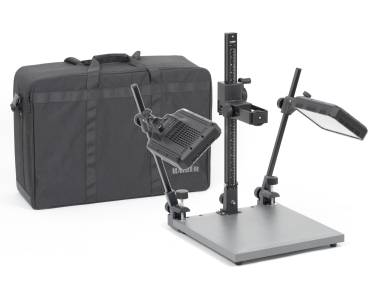

R2 CP 24D Image Capturing Set

Code no: 5308

Portable and foldable copy stand, incl. LED lighting unit with two PL 24D daylight soft lights. In strong carrying case.

RS 2 CP copy stand (5301) with non-reflective matt grey base board with printed fine grid and cm/inch scale. Matt-black anodized aluminum section tube column with cm/inch scale. Hand-cranked height adjustment by friction drive in plastic bearings. With horizontally adjustable camera arm to change the distance to the column, moves approx. 7 cm (2.8 in.) back and forth. 1/4” mounting thread. Column folds down on base board.

Base board (WxHxD): approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 in.)
Column height: approx. 60 cm (23.6 in.)
Maximum load: 1.5 kg (3.3 lbs.)

LED lighting unit with two PL 24D daylight panel lights, individually continuously dimmable. Flicker-free light, free from infrared and UV components.

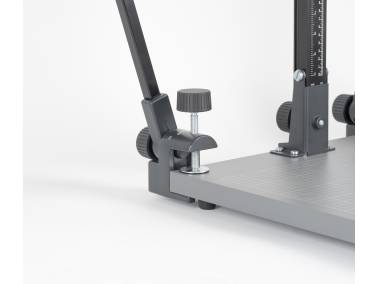

Lights tiltable and adjustable in height. Vertical arms tiltable in detent joints. Mounted with strong cast aluminum clamp bases, clamp width 48 mm (1.9 in.)

Light source: 2 x 120 High-CRI LEDs (SMD)
Color temperature: 5600 Kelvin
Color rendition index (CRI): 95
Power consumption: 2 x 24 W
Vertical arms: approx. 47 cm (18.5 in.), cross section 16 x 16 mm (0.6 x 0.6 in.)

(Same as RB 24D LED lighting unit (5468), but with short angle guides for mounting the lights to the vertical arms, especially for use with RS 2 CP copy stand).

Comes in a strong, padded carrying case 67 x 47 x 23 cm (26.4 x 18.5 x 9.1 in.) with handle and shoulder strap.
